Floorplan - 2017 Thor Motor Coach Vegas 25.3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 17
+17- Our Price: $84,990
-
Sleeps 4
-
1 Slides
-
Bunk Over CabOutdoor Entertainment
-
26ft Long

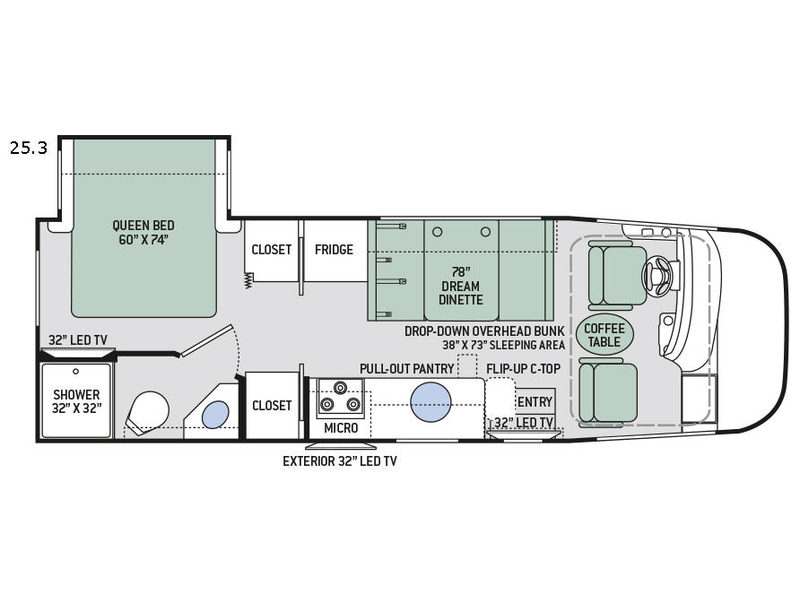

25.3 Floorplan
25.3 Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 1 |
| Length | 26 ft 6 in | Ext Width | 7 ft 10 in |
| Ext Height | 11 ft 3 in | Int Height | 6 ft 10 in |
| Hitch Weight | 8000 lbs | GVWR | 12500 lbs |
| Fresh Water Capacity | 50 gals | Grey Water Capacity | 41 gals |
| Black Water Capacity | 30 gals | Tire Size | 16" |
| Furnace BTU | 30000 btu | Fuel Type | Gas |
| Miles | 18017 | Engine | 6.8L Triton V10 |
| Chassis | Ford E-Series | Horsepower | 305 hp |
| Fuel Capacity | 55 gals | Wheelbase | 88 in |
| Number Of Bunks | 1 | Available Beds | Queen |
| Torque | 420 ft-lb | Refrigerator Size | 6 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 32" x 32" | Number of Awnings | 1 |
| LP Tank Capacity | 40.9 | Water Heater Type | Instant Tankless |
| AC BTU | 13500 btu | Basement Storage | 40 cu. ft. |
| TV Info | 32" LED TV LR, BR, and Exterior | Awning Info | 18' Power |
| Gross Combined Weight | 18500 lbs | Shower Type | Standard |
Description
Description
This Thor Motor Coach Vegas model 25.3 class A gas motorhome features a rear bedroom with side queen bed slide out, a rear corner bath, plus all of the amenities you need to comfortably spend time on the go.
As you enter there is a 32" LED TV above the door. This can easily be viewed from the Dream Dinette that is straight ahead. The dinette features seat belts for safety while traveling, and it easily makes into a bed that measures 42" x 74" for an extra guest.
To the left of the entry door find a kitchen where you can conveniently prepare and cook meals. There is a round sink, a counter space along with a flip up counter-top extension, a pull-out pantry, and three burner range with overhead microwave. There are also plenty of overhead cabinets and lower cupboards and drawers for dishes and things. The refrigerator is on the opposite side beside the Dream Dinette.
Slide open the doors to enter the private rear bedroom. Here you will find plenty of closet space in the two closets that are opposite one another. Enjoy a great night's rest on the queen bed slide which is along the road side wall. A 32" LED TV is on the opposite wall for easy viewing from bed.
A rear private corner bathroom includes a shower, a toilet, sink, and overhead cabinets. You will love the convenience of your own on board bath!
If you need an additional sleeping space, the drop-down overhead bunk above the cab provides a 38" x 73" sleeping space for an added guest.
Outside you can watch your favorite television show while enjoying the great outdoors, plus so much more!
As you enter there is a 32" LED TV above the door. This can easily be viewed from the Dream Dinette that is straight ahead. The dinette features seat belts for safety while traveling, and it easily makes into a bed that measures 42" x 74" for an extra guest.
To the left of the entry door find a kitchen where you can conveniently prepare and cook meals. There is a round sink, a counter space along with a flip up counter-top extension, a pull-out pantry, and three burner range with overhead microwave. There are also plenty of overhead cabinets and lower cupboards and drawers for dishes and things. The refrigerator is on the opposite side beside the Dream Dinette.
Slide open the doors to enter the private rear bedroom. Here you will find plenty of closet space in the two closets that are opposite one another. Enjoy a great night's rest on the queen bed slide which is along the road side wall. A 32" LED TV is on the opposite wall for easy viewing from bed.
A rear private corner bathroom includes a shower, a toilet, sink, and overhead cabinets. You will love the convenience of your own on board bath!
If you need an additional sleeping space, the drop-down overhead bunk above the cab provides a 38" x 73" sleeping space for an added guest.
Outside you can watch your favorite television show while enjoying the great outdoors, plus so much more!
Options:
- 1 AWNING
- 1 COUCH
- 1 SLIDE
- 1 SOLAR PANEL
- 2 FANS & 1 AC UNIT
- 2 INSIDE TV'S
- RADIO
- CD
- DVD
- 4.0 KW ONAN GENERATOR
- 5000 LB HITCH RATING
- 8 CU.FT 2 DOOR FRIDGE
- AMVIC LICENSED
- BATTERY INCLUDED / CHARGED
- BOTH TABLE
- CABLE PREP
- CAMVAP AVAILABLE UPON REQUEST
- CARFAC AVAILABLE UPON REQUEST
- COACH & CHASSIS BATTERIES
- COMPLIMENTARY PDI / ORIENTATION
- DUAL AXLES
- FORD MH CHASSIS
- GUARANTEE RV - READY - TO - CAMP PACKAGE
- HEATED ENCLOSED TANKS
- HYD LEV SYSTEM
- KING BED (TWIN BED)
- LP / ELECT H2O HTR
- LP FURNACE
- NO FEES. YOU PAY WHAT YOU SEE PLUS GST
- OUTDOOR ENTERAINMENT W/ TV
- PARTS GIFT CERTIFICATE INCLUDED
- PM-HEAT
- PS
- PB
- CRUISE
- PREVIOUSLY REGISTERED OUT OF PROVINCE
- PROPANE TANK INCLUDED / FILLED
- RANGE
- MICRO
- CONV
- REAR CAMERA
- SHOWER
- V 10 ENGINE
Features
Features
Standard Features (2017)
Construction & Exterior
- Ford® E-Series Chassis – 6.8L Triton® V10 Engine, 305HP, 420 lb.-ft. Torque – TorqShift® 6-Speed Automatic with Overdrive Transmission
- Welded Tubular Steel Floor System
- Welded Tubular Aluminum Roof & Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls & Floors with Block Foam Insulation
- Premium One-Piece TPO Roof
- One-Piece Fiberglass Front Cap
- HD-MAX® Exterior with Graphics Package
- Rotocast Storage Compartments
- Flush Mount Radius Compartment Doors
- Power Patio Awning with Integrated LED Lighting
- Slide out Room Awning
- Roof Ladder (24.1, 25.3, 25.4, 25.5)
- Patio Light
- Frameless Windows
- 8,000-lb. Trailer Hitch
Automotive & Cockpit
- Touchscreen AM/FM Dash Radio with CD Player, Bluetooth®, Back-Up Monitor & Mirror Display
- Heated/Remote Exterior Mirrors with Integrated Side View Cameras
- Reclining/Swivel Leatherette Captain’s Chairs with Stow-Away Coffee Table
- Cruise Control
- Tilt Steering Wheel
- Fog Lights
- Windshield Privacy Shade
- 16” Tires with Stainless Steel Wheel Liners
- Valve Stem Extenders on Rear Wheels
- Dash Workstation with 110-volt & 12-volt Outlets
Interior
- Rubber Tread Entry Steps with Lighted Step Well
- Metal Entry Grab Handle
- Residential Vinyl Flooring Throughout
- 82” Interior Ceiling Height
- LED Lighting
- Ceiling Ducted Air Conditioning System
- Flat Panel Cabinet Doors with Rattan Inlay & Nickel Finish Hardware
- Full Extension Ball-Bearing Metal Drawer Guides
- Leatherette Sofa & Removable Pedestal Table (24.1)
- Leatherette Jack-Knife Sofa & Removable Pedestal Table (25.2)
- Dream Dinette® Booth (25.3 & 25.4)
- Power Drop-Down Hide-Away Overhead Bunk with Cotton Cloud™ Mattress & Bunk Ladder
- Window Privacy Shades
- 12-volt Attic Fan with Cover in Living Area
Kitchen
- 6 cu. ft. Double Door Refrigerator
- 3-Burner Gas Cook-top
- Convection Microwave Oven
- Pressed Laminate Counter-tops
- Oversized Sink with Single Handle Faucet & Pull-Down Sprayer
- Flip-Up Counter-top Extension
- Pull-Out Pantry (25.2, 25.3 & 25.4)
Kitchen Option
- 3 Burner Gas Cook-top with Oven & Standard Microwave Oven
Bedroom & Bathroom
- Two (2) Twin Beds with Upholstered Covers – Converts to King Size Bed (24.1)
- Queen Size Bed (25.2 & 25.3)
- Full Size Bed (25.4)
- Designer Headboard (24.1& 25.3)
- Solid Surface Counter-top (24.1 Bathroom Only)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
