- Floorplan - 2016 Outdoors RV Creek Side 27BHS
- Employee Price: $30,990
-
Sleeps 8
-
1 Slides
-
BunkhouseU Shaped Dinette
-
33ft Long
-
6,995 lbs

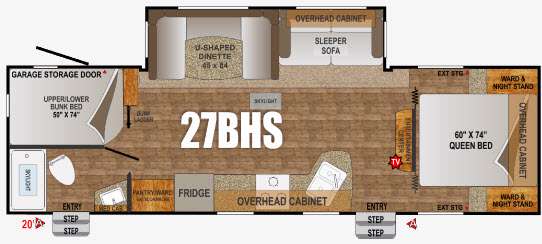

27BHS Floorplan
Specifications
Sleeps | 8 | Slides | 1 |
Length | 32 ft 8 in | Ext Height | 11 ft 4 in |
Int Height | 6 ft 11 in | Hitch Weight | 660 lbs |
GVWR | 8800 lbs | Dry Weight | 6995 lbs |
Cargo Capacity | 1805 lbs | Fresh Water Capacity | 80 gals |
Grey Water Capacity | 80 gals | Black Water Capacity | 40 gals |
Tire Size | ST225/75/15D | Furnace BTU | 35000 btu |
Description
Outdoors RV offers the Creek Side 27BHS travel trailer with dual entry, rear bunk beds, and a single slide.
As you enter the main entry near the front of this trailer, a bedroom is on your right. You can enter the room from either side of the living room entertainment center via the privacy curtains. The bedroom includes a queen bed, wardrobes over nightstands on each side, and overhead cabinets.
The road side wall includes a slide out sleeper sofa with overhead cabinets, and a u-shaped dinette. A skylight allows natural light into the living/kitchen area. There is an entertainment cabinet with a TV on the interior wall for easy viewing.
In the right rear corner of the trailer there are upper and lower bunk beds for additional sleeping space including a ladder. A handy garage storage door for easy loading and unloading is available on this side.
The opposite corner includes a full bathroom featuring a shower with skylight, vanity sink, medicine cabinet, a toilet, and a private entry/exit door to the outside.
The kitchen includes a pantry/wardrobe with XL drawers, a refrigerator, a three burner range, overhead cabinets, and an angled double sink along the curb side.
Near the outside front of the trailer, you will find exterior storage on each side as well as an awning that covers both entry doors along the curb side, plus more!
- 1 A/C UNIT
- 1 CLOTH HIDE-A-BED TRI-FOLD COUCH
- 1 INSIDE TV
- 1 PWR AWNING
- 1 SKYLITE
- 1 SLIDE
- 2 FANS
- 6 CU FT - 2 DOOR FRIDGE
- AMVIC LICENSED
- BATTERY INCLUDED / CHARGED
- BOOTH
- BUNKS
- CABLE & SOLAR PREP
- COMPLIMENTARY PDI / ORIENTATION
- HEATED ENCL. TANKS
- NO FEES. YOU PAY WHAT YOU SEE PLUS GST
- PARTS GIFT CERTIFICATE INCLUDED
- PROPANE & ELECTRIC H20 HTR
- PROPANE FURNACE
- PROPANE TANK INCLUDED / FILLED
- QUEEN BED
- RADIO / CD / DVD
- RANGE / OVEN / MICRO
- READY TO CAMP PACKAGE
- SHOWER & BATH COMBO
Features
-
Vaulted Radius Ceiling (Approx 5” of Additional Headroom)
-
Adjustable Pitch XL Power Awning with Rain Dump Arm
-
*12V Triple Charge Station (Charges iPads and Cell phones)
- *Roof Mounted Battery Saving Solar Panel/Battery Disconnect
-
*True Full Size "Outdoor Style” BBQ Bib/ 12' Hose
-
*"Welcome to the Outdoors" Entry Mat
-
*Rechargeable Flashlight/Nightlight
-
*Bathroom Wall Mounted Hairdryer/Silverware Drawer
-
Norcold Adjustable Fridge w/ *Hardwood Front PanelsXL Fridge - (23DBS, *26RLS, *27DBHS, 27BHS)
- *Porcelain Toilet
-
*”Dream Soft” Pillow Top Mattress
-
*Dinette Drawer System (2 Pot & Pan Drawers) (1 on 20FQ)
-
*Jensen Premium Exterior Speakers
-
Full Extension 100lb Metal Drawer Guides (All Drawers)
-
Black Tank Flush/ Detachable Power Cord
-
Outdoors RV Spare Tire Cover
- Microwave/ HD TV Antenna/ Bluetooth CD-DVD Player
-
Coleman 13.5 High Efficiency A/C
-
*10 Gallon LP/110V DSI Water Heater (6 Gal. 20FQ, 21RBS, 23BHS)
-
*Slam Latch Cooler Sized Luggage Compartments (1 on 20FQ)
-
*Friction Hinge (Wind Resistant) Entry Door(s)
-
*Living Room Thermal Insulated Skylight w/Shade
-
*XL Exterior Entry Door Grab Bar Handle
-
*LED Porch Light / Night Shades
-
*Dump Valve and Luggage Compartment Lights
-
*DSS Satellite Ready
-
*Luggage Compartment Holders for Jack Handles
-
Color Coordinated Gray & Black Dump Valve Handles
- *Up to 80 Gallon Fresh Water Capacity
-
*19”- 28” 12V Jensen LED HD Living Room TV (32" on 23DBS, 27DBHS, 27BHS)
-
*Interior/ Exterior Energy Saving LED Lights
-
*Ultra Leather Tri-Fold Sleeper Sofa (Model Specific)
- *2 Ultra Leather Glider Recliners (23RKS Option, 26RLS)
- Atwood 3000lb Power Tongue Jack with LED Light
- Exterior Shower / 22" XL Range (Most Models)
- Extra Counter Space - Range Cover, 2 Sink Lids
- *Upgraded Bed Comforter
-
1.2.3 Built Outdoors Tough Warranty
-
Rugged 2” Bonded Aluminum Frame Walls - Every Exterior Wall
-
*HD Fiberglass Front Cap with Armor Guard Off-Road Protection (23DBS, 23RKS, 26RLS, 27DBHS, 27BHS)
-
Eco-Friendly Laminated Wall Cutouts in Dinette Construction w/ 5" Thick Cushions
- *HD Diamond Plate Front Cap Protection
- Fiberglass Hardwall Construction - Every Wall
- Trekk "Outdoor Tough" Flooring - 7 Layers - 3 Year Cold Cracking Warranty to -50
- Laminated Fiberglass Slide-Out Floor
-
*"No Boundaries" Off-Grid Solar Ready - Includes Door Side Portable Solar Port
- Custom Built Cambered Off Road Chassis - *HD Shock Absorbers
-
Rugged Integrated A-Frame / Protected Junction Box Wiring
-
Rugged Armor Guard Protected Bumper
-
Heavy Duty 6 Lug 5200LB Axles with Off-Road Brake System (5 Lug, 3500LB Axles on 20FQ, 21RBS, 22RB, 23BHS, 23RBS)
- 15" Rugged Mud Flaps
-
Roto-Torqued "Outdoors Tough" Cabinetry
-
15” *GoodYear Radial Trailer Approved Tires Safety/Warranty
-
15” *GoodYear Spare Radial Trailer Approved Tire with Carrier
-
Metal Luggage Door Catches / Off Road Clearance Lights
-
Radius Crowned Full Walk-On Roof with *Ladder
-
Exterior Grade Plywood Roof and Floor Decking
-
*Rugged Charcoal Embossed Sidewall Skirts (NA 20FQ, 21RBS, 22RB, 23RBS, 23BHS)
- *Aluminum Wheels
Outdoors "Climate Designed Four Seasons" Package
- *"Mountain Extreme" Thermal Pane Windows
- Climate Designed - Four Seasons Camping - Designed for Mountain States & Western Canada
- *Triple Layered Four Seasons Roof Insulation (R-15 Astrofoil & Two layers of R-7 Fiberglass Insulation)
- Fully Enclosed Front to Back - Heated - Insulated Underbelly Double Mountain Floor Insulation
- *1" Thick Thermal Insulated Luggage Doors
- *Exterior Shower Insulated by 1" Thick Thermal Insulated Luggage Door
- *R-15 Astrofoil Roof, Slide-out Floor, Entire Underbelly, Additional Wrap Around Holding Tanks
- *Insulated Snap Cover for Bedroom Roof Vent
- *XL Furnace (Extreme Camping Heat System)
- Norcold Cold Weather Kit-Enables Fridge Operation Down to 0 degrees F
- *Ozite Insulated Luggage Compartments
-
CSA (Canada)
-
50 Amp Service w/ Pre-Wire for Bedroom A/C (26RLS, 27DBHS, 27BHS)
- 12V Heat Pad (Fresh Tank) (NA 20FQ, 22RB)
-
HD Power Stab Jacks (Standard w/ Remote Camping Package)
-
Remote Camping Package (Operates Awning, Slide-Out, Porch Lights, Stab Jacks)
-
"No Boundaries" Off-Grid Solar 160 Package - (1) 160w Panel
-
Maxx Air Remote Vent Fans w/ Rain Cover (Bed and Bath)
-
Maxx Air Vent Fan w/ Rain Cover (Bath Only)
- Premium Euro Top Mattress (60" x 74") (20FQ, 22RB, 23BHS, 23RKS, 27DBHS, 27BHS)
- Premium Euro Top Mattress (60" x 80") (21RBS, 23DBS, 23RBS, 26RLS)
- Bedroom Convertible Sofa (21RBS, 23BHS)
- 2 Ultra Leather Glider Recliners IPO Sofa (23RKS)
- Wireless Back Up Camera
- Center Awning Cradle (NA 20FQ, 21RBS)
- Slide Topper Awning w/ Weather Guard Shield (NA 20FQ, 22RB)
Available "Mountain Tough" Option Packages
- Armor Shield Package:
- (Tread Lite Aluminum Entry Steps, Weather Guard Awning shield, Rubber Diamond Plate Protection In Luggage Compartment Areas)
- BackCountry X4 Package: (20FQ, 21RBS, 22RB, 23RBS, 23BHS)
- (15" 225 D Range Tires w/ Premium Aluminum Wheel, MORryde 3000 Rubber Suspension, Monore Off-Road Shocks, HD Shackle Kit)
- BackCountry X4 Package: (23DBS, 23RKS, 26RLS, 27DBHS, 27BHS)
- (16" 235 E Range Tires w/ Premium Aluminum Wheel, MORryde 3000 Rubber Suspension, Monroe Off-Road Shocks, HD Shackle Kit, HD 4000lb Atwood Tongue Jack)
- Mountain Storage System:
- (2" Receiver Hitch & Toylock System)
